Historic trends in altitude

Altitude of objects attained by man-made means has seen six discontinuities of more than ten years of progress at previous rates since 1783, shown below.

YearHeight (m)Discontinuity (years)Entity
178440001032Balloon
180372801693Balloon
191842,300227Paris gun
194285,000120V-2 Rocket
1944174,60011V-2 Rocket
1957864,000,00035Pellets (after one day)

Details

This case study is part of AI Impacts’ discontinuous progress investigation.

Trends

Altitude of objects attained by manmade means

We looked for records in height from the ground reached by any object via man-made technology.

‘Man-made technology’ is ambiguous, but we exclude for instance objects tied to birds and debris carried up by hurricanes. We include debris launched unintentionally via gunpowder explosion, and rocks launched via human arms.

We measure ‘altitude’ from the ground at the launch site. This excludes mountain climbing, but also early flight attempts that involve jumping from towers and traveling downward slowly.1 It also excludes early parachutes, which were mentioned in fiction thousands of years ago.2

Measured finely enough, there are never discontinuities in altitude, since objects travel continuously.3 This prohibits finding discontinuities in continuously measured altitude, but doesn’t interfere with the dataset being relevant evidence to us. We are interested in discontinuities because they tell us about how much surprising progress can happen in a short time, and how much progress can come from a single innovation. So to make use of this data, we need to find alternate ways of measuring it that fulfill these purposes.

For the purpose of knowing about progress in short periods, we can choose a short period of interest, and measure jumps in progress made at that scale. For the purpose of knowing about progress made by single innovations, we can assign the maximum altitude reached to the time that the relevant innovation was made, for instance.4

We could measure both of these trends, but currently only measure a version of the former. For short periods of travel, we assign the maximum altitude reached to the date given (our understanding is that most of the entries took place over less than one day). For travel that appears to have taken more than a day, we record any altitudes we have particular information about, and otherwise estimate records on roughly an annual basis, including a record for the peak altitude (and possibly more than a year apart to allow for the final record to have the maximum altitude). This is ad hoc, but for the current purpose, converting what we have to a more consistent standard does not seem worth it. Instead, we consider these the effects of these choices when measuring discontinuities. They do not appear to matter, except to make modest differences to the size of the pellet discontinuity, discussed below (section, ‘Discontinuity measurement’).

Data

We collected data from various sources, and added them to this spreadsheet, tab ‘Manned and unmanned’. This data is shown in Figures 1-3 below. We have not thoroughly verified this data.

Record altitudes might plausibly be reached by a diversity of objects for a diversity of purposes, so collecting such data is especially dependent on imagination for the landscape of these.5 For this reason, this data is especially likely to be incomplete.

We also intentionally left the data less complete than usual in places where completeness seemed costly and unlikely to affect conclusions about discontinuities. The following section discusses our collection of data for different periods in history and details of our reasoning about it.

Detailed overview of data

Here we describe the history of progress in altitude reached and the nature of the data we collected during different times. See the spreadsheet for all uncited sources.

Chimps throw rocks, so we infer that humans have probably also done this from the beginning.6 A good rock throw can apparently reach around 25m. Between then and the late 1700s, humanity developed archery, sky lanterns, kites, gunpowder, other projectile weapons, rockets, and primitive wings7, among probably other things. However records before the late 1700s are hard or impossible to find, so we do not begin the search for discontinuities until a slew of hot air balloon records beginning in 1783s. We collected some earlier records in order to have a rough trend to compare later advances to, but we are likely missing many entries, and the entries we have are quite uncertain. (It is more important to have relatively complete data for measuring discontinuities than it is for estimating a trend.)

The highest altitude probably attained before the late 1700s that we know of was reached by debris in a large gunpowder building explosion in 1280, which we estimate traveled around 2.5km into the air. Whether to treat this as a ‘man-made technology’ is ambiguous, given that it was not intentional, but we choose to ignore intention.8

Kites may also have traveled quite high, quite early. It appears that they have been around for at least two thousand years.9 and were used in ancient warfare and even occasionally for lifting people. We find it hard to rule out the possibility that early kites could travel one or two thousand meters into the air: modern kites frequently fly at 2km altitudes, silk has been available for thousands of years, and modern silk at least appears to be about as strong as nylon.10 Thus if we are wrong about the gunpowder factory explosion, it is still plausible that two thousand meter altitudes were achieved by kites.

Over a period of three and a half months from August 1783, manned hot air balloons were invented,11 and taken from an initial maximum altitude of 24m up to a maximum altitude of 2700m. While this was important progress in manned travel12, most of these hot air balloons were still lower than the gunpowder explosion and perhaps kites. Nonetheless, there are enough records from around this time, that we begin our search for discontinuities here.

The first time that humanity sent any object clearly higher than ancient kites or explosion debris was December 1783, when the first hydrogen balloon flight ascended to 2,700m. This was not much more than we (very roughly) estimate that those earlier objects traveled. However the hot air balloon trend continued its steep incline, and in 1784 a balloon reached 4000m, which is over a thousand years of discontinuity given our estimates (if we estimated the rate of progress as an order of magnitude higher or lower, the discontinuity would remain large, so the uncertainties involved are not critical.)

The next hot air balloon that we have records for ascended nearly twice as high—7280m—in 1803, representing another over a thousand years of discontinuity. We did not thoroughly search for records between these times. However if that progress actually accrued incrementally over the twenty years between these records, then still every year would have seen an extra 85 years of progress at the previous rate, so there must have been at least one year that saw at least that much progress, and it seems likely that in fact at least one year saw over a hundred years of progress. Thus there was very likely a large discontinuity at that time, regardless of the trend between 1784 and 1803.

We collected all entries from Wikipedia’s Flight altitude record page, which claims to cover ‘highest aeronautical flights conducted in the atmosphere, set since the age of ballooning’.13 It is not entirely clear to us what ‘aeronautical flights’ covers, but seemingly at least hot air balloons and planes. The list includes some unmanned balloons, but it isn’t clear whether they are claiming to cover all of them. They also include two cannon projectiles, but not 38 cm SK L/45 “Max”, which appears to be a record relative to anything they have, and cannon projectiles are probably not ‘flights’, so we think they are not claiming to have exhaustively covered those. Thus between the late 1700s, and the first flights beyond the atmosphere, the main things this data seems likely to be missing is military projectiles, and any other non-flight atmospheric-level objects.

We searched separately for military projectiles during this period. Wikipedia claims, without citation, that the 1918 Paris gun represented the greatest height reached by a human-made projectile until the first successful V-2 flight test in October 194214, which matches what we could find. We searched for military records prior to the Paris gun, and found only one other, “Max” mentioned above, a 38cm German naval gun from 1914.

We expect there are no much higher military records we are missing during this time but that we could easily have missed some similar ones. As shown in Figure 1, the trend of military records we are aware of is fairly linear, and that line is substantially below the balloon record trend until around 1900. So it would be surprising if there were earlier military records that beat balloon records, and less surprising if we were missing something between 1900 and 1918. It seems unlikely however that we could have missed enough data that the Paris Gun did not represent at least a moderate discontinuity.15

We could not think of other types of objects that might have gone higher than aeronautical flights and military projectiles between the record 1803 balloon and V-2 rockets reaching ‘the edge of space’ from 1942. Thus the data in this period seems likely to be relatively complete, or primarily missing less important military projectiles.

The German V-2 rockets are considered the first man-made objects to travel to space (though the modern definition of space is higher)16 so they are presumably the highest thing at that time (1942). They are also considered the first projectile record since the Paris gun, supporting this. Wikipedia has an extensive list of V-2 test launches and their outcomes, from which we infer than three of them represent altitude records.17

The two gun records we know of were both German WWI guns, and the V2 rockets that followed were German WWII weapons, apparently developed in an attempt to replace the Paris Gun when it was banned under the Versailles Treaty.18 So all altitude records between the balloons of the 1800s and the space rockets of the 50s appear to be German military efforts.

Between the last record V-2 rocket in 1946 and 1957, we found a series of rockets that traveled to increasing altitudes. We are not confident that there were no other record rocket altitudes in this time. However the rockets we know of appear to have been important ones, so it seems unlikely that other rockets at the time were radically more powerful, and there does not appear to have been surprising progress over that entire period considered together, so there could not have been much surprising progress in any particular year of it, unless the final record should be substantially higher than we think. We are quite unsure about the final record (the R-7 Semyorka), however it doesn’t seem as though it could have gone higher than 3000km, which would only add a further four years of surprising progress to be distributed in the period.

In October 1957, at least one centimeter-sized pellet was apparently launched into solar orbit, using shaped charges and a rocket. As far as we know, this was the first time an object escaped Earth’s gravity to orbit the sun.19 This episode does not appear to be mentioned often, but we haven’t found anyone disputing its being the first time a man-made object entered solar orbit, or offering an alternate object.

Because the pellets launched were just pellets, with no sophisticated monitoring equipment, it is harder to know what orbit they ended up in, and therefore exactly how long it took to reach their furthest distance from Earth, or what it was. Based on their speed and direction, we estimate they should still have been moving at around 10km/s as they escaped Earth’s gravity. Within a day we estimate that they should have traveled more than six hundred times further away than anything earlier that we know of. Then conservatively they should have reached the other side of the sun, at a distance from it comparable to that of Earth, in around 1.5 years. However this is all quite uncertain.

At around this time, reaching maximum altitudes goes from taking on the order of days to on the order of years. As discussed at the start of section ‘Altitude of objects attained by manmade means’ above, from here on we record new altitudes every year or so for objects traveling at increasing altitudes over more than a year.

In the years between 1959 and 1973, various objects entered heliocentric orbit.20 It is possible that some of them reached greater altitudes than the pellets, via being in different orbits around the sun. Calculating records here is difficult, because reaching maximal distance from Earth takes years,21 and how far an object is from Earth at any time depends on how their (eccentric) orbits relate to Earth’s, in 3D space. Often, the relevant information isn’t available.

Among artificial objects in heliocentric orbit listed by Wikipedia22 none are listed as having orbits where they travel more than 1.6 times further from the Sun than Earth does23, though many are missing such data. This is probably less far than the pellets, though further away than our conservative estimate for the pellets. For an object to reach this maximal distance from the Earth, it would need to be at this furthest part of its orbit, while being on the opposite side of the Sun from Earth, on the same plane as Earth.

Given all of this, it seems implausible that anything went ten times as far from the Sun as Earth by 1960, but even this would not have represented a discontinuity of even ten years. Given this and the difficulty of calculating records, we haven’t investigated this period of solar orbiters thoroughly.

In 1973 Pioneer 10 became the first of five space probes to begin a journey outside the solar system. In 1998 it was overtaken by Voyager 1. We know that no other probes were the furthest object during that time, however have not checked whether various other objects exiting the solar system (largely stages of multi-stage rockets that launched the aforementioned probes) might have gone further.

Figure 1 shows all of the altitude data we collected, including entries that turned out not to be records. Figures 2 and 3 show the best current altitude record over time.

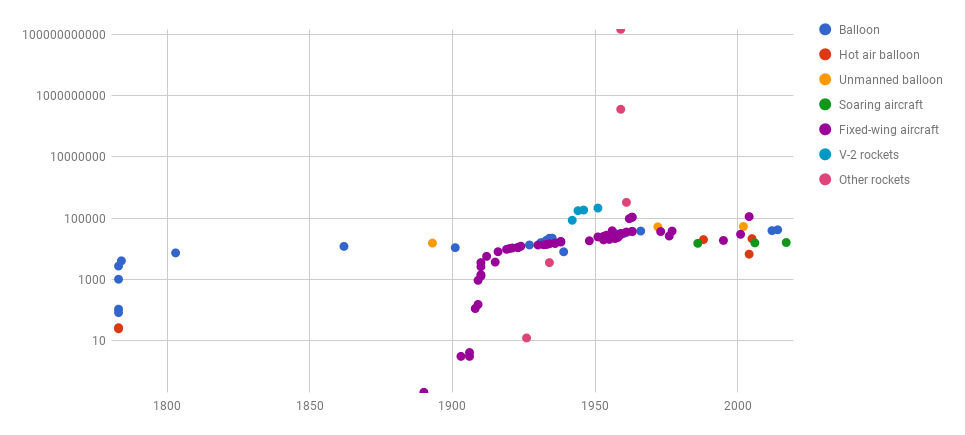

Figure 1: Post-1750 altitudes of various objects, including many non-records. Whether we collected data for non-records is inconsistent, so this is not a complete picture of progress within object types. It should however contain most aircraft and balloon records since 1783. See image in detail here.

Figure 2: record altitudes known to us since 1750
Figure 3: Record altitudes known to us since 6000 BC (early ones estimated imprecisely)
Discontinuity measurement

For measuring discontinuities, we treat the past trend at a given point as linear or exponential and as starting from earlier or later dates depending on what fits well at that time.24 Relative to these previous rates, this altitude trend contains six discontinuities of greater than ten years, with four of them being greater than 100 years:25

YearHeight (m)Discontinuity (years)Entity
178440001032Balloon
180372801693Balloon
191842,300227Paris gun
194285,000120V-2 Rocket
1944174,60011V-2 Rocket
1957864,000,00035Pellets (after one day)

The 1957 pellets would be a 66 year discontinuity if we counted all of their ultimate estimated altitude as one jump on the day after their launch, so exactly how one decides to treat altitudes that grow over years is unlikely to prevent these pellets representing a discontinuity of between ten and a hundred years.

In addition to the size of these discontinuities in years, we have tabulated a number of other potentially relevant metrics here.26

Notes

  1. For instance Hezârfen Ahmed Çelebi was reported to travel over 3km while losing 77m of altitude between a tower and a square in 1632.

    See ‘site details’, “Hezârfen Ahmed Çelebi.” In Wikipedia, September 25, 2019. https://en.wikipedia.org/w/index.php?title=Hez%C3%A2rfen_Ahmed_%C3%87elebi&oldid=917757610.

  2. “The earliest fictional account of a parachute type of device was made some 4,000 years ago when the Chinese noticed that air resistance would slow a person’s fall from a height.”

    “Parachute.” In Wikipedia, November 21, 2019. https://en.wikipedia.org/w/index.php?title=Parachute&oldid=927299715.
  3. As an object passes a previous record, first it is equal to it, then it moves continually past and onwards.
  4. In many trends, if the full benefits of an innovation are not manifest until later, it is hard to connect it to that innovation, since further innovations are made, and contribute to ongoing progress. However with altitude, once an object is flying away from the Earth, further innovation in rocket design on Earth will not affect it, so we can measure this.
  5. For instance, the earliest objects we found that probably traveled as far away as the sun were small pellets fired into the sky for this purpose, which we did not immediately think to search for, and might easily have missed if we had only considered space probes
  6. “Recent research demonstrates that the bonds of kinship will not keep a chimp from piling up stones and hurling them at zoo visitors if they get too close. A new study of wild chimps at four sites in West Africa now shows that they also like to throw stones at trees.”

    BalterFeb. 29, Michael, 2016, and 5:00 Am. “Why Do Some Chimps Throw Rocks at Trees?” Science | AAAS, February 26, 2016. https://www.sciencemag.org/news/2016/02/why-do-some-chimps-throw-rocks-trees.

  7. See examples of early flying attempts here and here
  8. If we did not want to include unintentional object launches, this explosion does still suggest that intentionally launching debris that far using gunpowder was possible at the time, though it is unclear to us whether it was possible to do in a more controlled fashion, such that it might have been useful to anyone, and therefore for this possibility to imply much about what happened.
  9. Stephanie Hall discusses some evidence that they were around by 1200 BC, here.
  10. See spreadsheet for more detailed reasoning as well as citations.
  11. Though unmanned hot air propelled vessels are older: sky lanterns appear to have existed for thousands of years, and we saw one claim that hot-air aerostats existed in the 9th Century (which may just mean more sky lanterns, except that that wouldn’t make sense in context because sky lanterns are older.) ‘…the Middle Ages from the ninth century at least were familiar with hot-air aerostats used as military signals’

    White, Lynn. “Eilmer of Malmesbury, an Eleventh Century Aviator: A Case Study of Technological Innovation, Its Context and Tradition.” Technology and Culture 2, no. 2 (1961): 97–111. https://doi.org/10.2307/3101411. p98

  12. Though perhaps in the convenience, reliability and safety of it before the height of it—Marco Polo describes observing a man-carrying kite that ‘might go up until it may no longer be seen’ by 1295.

    Translation from Latin, found in only two manuscripts of Marco Polo’s work, but considered likely to be genuine: “The men of the ship will have wicker framework, that is a grate of switches, and to each corner and side of that framework will be tied a cord, so that there are eight cords and all of these are tied at the other end to a long rope. Next they will find some fool or drunkard and lash him to the frame, since no one in his right mind or with his wits about him would expose himself to that peril. This is done when the wind is high, then they raise the framework into the teeth of the wind and the wind lifts up the framework and carries it aloft, and the men hold it by the long rope. If the kite tips the men on the ground haul on the rope to straighten it, then pay the rope out again so by this means it might go up until it could no longer be seen, if only the rope were long enough.”

    Taken from the first of these, but a very similar translation available at the second:

    Beachcombing’s Bizarre History Blog. “Manned Kite Flight in Medieval China,” May 12, 2011. http://www.strangehistory.net/2011/05/13/manned-kite-flight-in-medieval-china/.

    White, Lynn. “Eilmer of Malmesbury, an Eleventh Century Aviator: A Case Study of Technological Innovation, Its Context and Tradition.” Technology and Culture 2, no. 2 (1961): 97–111. https://doi.org/10.2307/3101411.

  13. Such records were previously found to contain numerous discrepancies with different sources, so it seems likely that there are still some errors, however the known past errors were within ten percent, so this seems unlikely to be an important issue. See examples of discrepancies at “Talk:Flight Altitude Record.” In Wikipedia, February 28, 2018. https://en.wikipedia.org/w/index.php?title=Talk:Flight_altitude_record&oldid=828133827.
  14. “The gun was capable of firing a 106-kilogram (234 lb)[1]:120 shell to a range of 130 kilometers (81 mi) and a maximum altitude of 42.3 kilometers (26.3 mi)[1]:120—the greatest height reached by a human-made projectile until the first successful V-2 flight test in October 1942.”“Paris Gun.” In Wikipedia, August 19, 2019. https://en.wikipedia.org/w/index.php?title=Paris_Gun&oldid=911481367.
  15. The Paris Gun was a 227 year discontinuity according to our calculations below, so had there been incremental progress over the four years since the previous record (assuming that was the same), each year would still have seen over fifty years of surprising progress (at least ignoring readjustment of expectations after seeing this twice in a row). Nonetheless, it is possible that there was enough incremental progress between 1893 and 1918 that we did not find that the Paris Gun is not a substantial discontinuity. It seems fairly unlikely to us that we would not have found any of it.
  16. “The V-2 rocket also became the first man-made object to travel into space by crossing the Kármán line with the vertical launch of MW 18014 on 20 June 1944.[5]

    “V-2 Rocket.” In Wikipedia, November 15, 2019. https://en.wikipedia.org/w/index.php?title=V-2_rocket&oldid=926267063.

  17. A fairly early one was fired undesirably steeply, and so became the first rocket to reach space, as defined at the time. Thus it is less surprising that so few were records.
  18. “In the 1930s, the German Army became interested in rockets for long-range artillery as a replacement for the Paris Gun—which was specifically banned under the Versailles Treaty. This work would eventually led to the V-2 rocket that was used in World War II.” – “Paris Gun.” In Wikipedia, August 19, 2019. https://en.wikipedia.org/w/index.php?title=Paris_Gun&oldid=911481367.
  19. For instance, Fritz Zwicky, the scientist responsible, writes in an article called, “The first shots into interplanetary space”, that “Small man-made projectiles were launched away from the earth for the first time, never to return.” We think he means that this was the first time anything was launched away from the Earth, never to return, rather than just the record for ‘shots’ or ‘small man-made projectiles’.

    Zwicky, Fritz. “The First Shots Into Interplanetary Space.” Engineering and Science 21 (January 1, 1958): 20–23.

  20. Wikipedia lists them.

    “List of Artificial Objects in Heliocentric Orbit.” In Wikipedia, November 21, 2019. https://en.wikipedia.org/w/index.php?title=List_of_artificial_objects_in_heliocentric_orbit&oldid=927304642.

  21. For instance, we roughly estimate that Luna 1 took five years to reach its maximum distance from Earth.
  22. Though known to not be complete: “This list does not include objects that are escaping from the Solar System, upper stages from robotic missions (only the S-IVB upper stages from Apollo missions with astronauts are listed), or objects in the Sun–Earth Lagrange points.”

    “List of Artificial Objects in Heliocentric Orbit.” In Wikipedia, November 21, 2019. https://en.wikipedia.org/w/index.php?title=List_of_artificial_objects_in_heliocentric_orbit&oldid=927304642.
  23. Zond 3 was the furthest we found.
  24. See our methodology page for more details. The trends are colored differently in column D of ‘calculations’ tab in the spreadsheet.
  25. See our methodology page for more details, and our spreadsheet, tab ‘Calculations’ for the calculation.
  26. See our methodology page for more details.
